Product Description

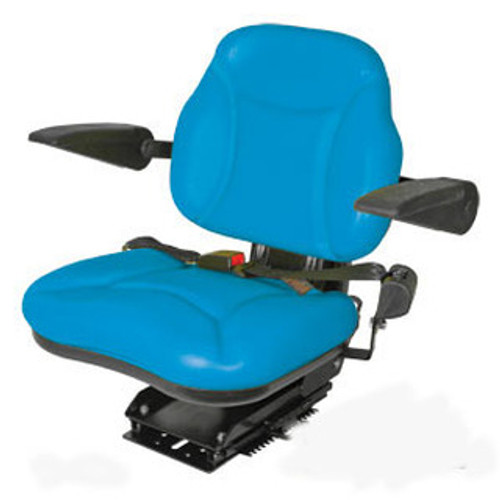

Big Boy Tractor Seat Blue Vinyl w Armrest 330 Lbs Capacity
-
Big Boy seat is a universal replacement vinyl seat. 3 position angle mounting, slide track, and weight adjustment. Seat utilizes 2 springs and 1 shock. 29" wide outside to outside of arm rests. From floor to top of back rest is 25.50". From floor to top of seat cushion is 12.250". Cushion is 18.00" wide by 15.00" from front to back. Does not have provision for operators presence switch. • Does not have provision for operators presence switch. • 330 lb / 150 kg weight limit • Arm rests flip up and down. When down, tilt can be changed slightly with adjustment bolt. They are fixed and do not have in and out adjustment. Dim A (1) 3 Position Angle Mounting Dim B (2) Slide Track Dim C (3) Weight Adjustment Dim D (4) Seat Belt Included Dim E (5) 2 springs, 1 shock
